Indications
Rotator cuff arthropathy
Four part proximal humerus fracture
? Shoulder osteoarthritis with intact rotator cuff in older patients
Revision shoulder arthroplasty
Australian Joint Registry 2024
Revision rate %
| Indication | 1 year | 5 year | 10 year | 14 years |
|---|---|---|---|---|
| Rotator cuff arthropathy (n=20,500) | 2.3 | 4.2 | 5.4 | 6.1 |
| Osteoarthritis (n=24,000) | 1.9 | 3.5 | 5.0 | 6.7 |
| Fracture (n=8,000) | 3.1 | 4.8 | 5.9 | 5.9 |
Design
Anatomic shoulder arthroplasty in cuff deficient shoulders
High failure rate
- superior migration / edge loading
- rocking horse phenomenon
Reverse shoulder arthroplasty
Reverse
- socket in proximal humerus
- ball in glenoid
- center of rotation shifted medially and distally
- allows deltoid to apply compressive force and stabilize joint in absence of rotator cuff
Paul Grammont in 1985
- humeral component concave
- glenoid component / glenospere convex
- glenoid component uncemented with peripheral screws and central plug
- center of rotation shifted medially to glenosphere with humerus distal
Center of rotation
| Glenoid center of rotation | Humeral component | Four options |
|---|---|---|
|
Medialized or lateralized Based upon glenosphere thickness |
Medialized or lateralized Distance between the intramedullary canal axis / center of rotation of the humeral liner Influenced by humeral design / angle and liner thickness |
Medialized glenosphere / medialized humerus (MGMH) Medialized glenosphere / lateralized humerus (MGMH) Lateralized glenosphere / medialized humerus (MGMH) Lateralized glenosphere / lateralized humerus (MGMH) |
- systematic review of rTSA
- medialized versus lateralized center of rotation
- better external rotation (20 v 8 degrees) and lower notching (7% v 48%) with lateralized COR
Bearing surfaces

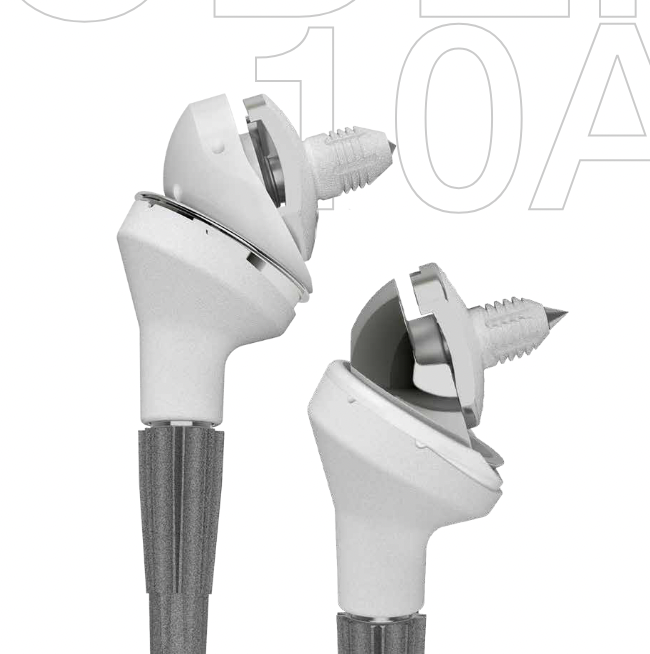

Lima SMR
| Bearing surfaces | 1 year | 5 year | 10 year | 14 year |
|---|---|---|---|---|
| Metal / XLPE (n=4,000) | 2.1 | 3.3 | 4.3 |
|
| Non XLPE / Metal (n=14,500) | 1.9 | 3.7 | 5.4 | 7.3 |
| XLPE / Metal (n=4,800) | 1.6 | 2.9 | 4.3 | 5.8 |
Glenoid component

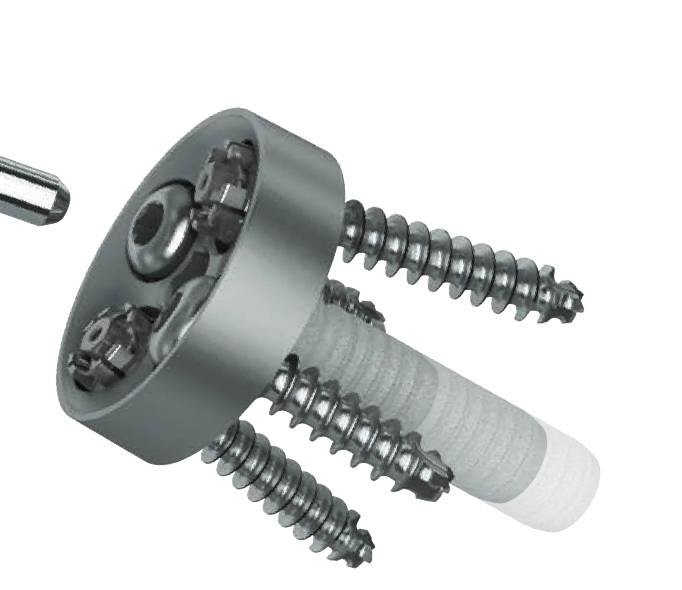

Metaglene / baseplate
Depuy Synthes Delta Xtend
Uncemented

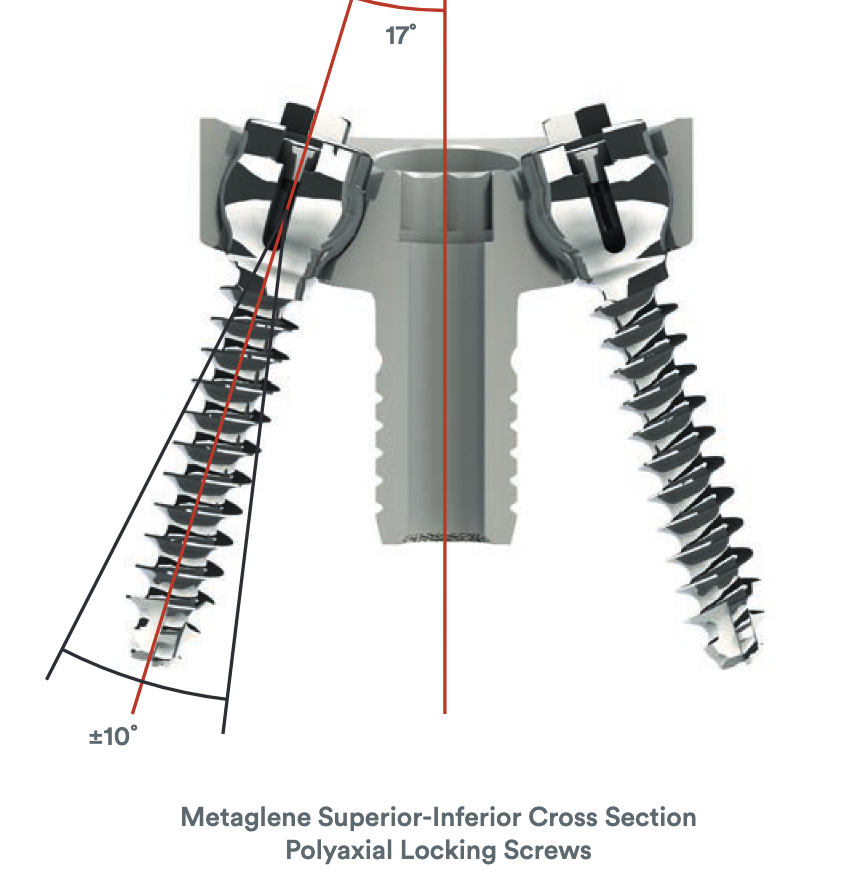

Secured by locking and non locking screws along with a central peg
Inlay versus onlay
Glenoid augmentation
Custom jigs
Glenosphere
Custom jigs
- Australian joint registry - reduced revision rate with the use of custom jigs
Size
| Glenosphere size | 14 year |
|---|---|
| < 38 mm | 6.5 |
| 38 - 40 mm | 7.0 |
| > 40 mm | 6.4 |

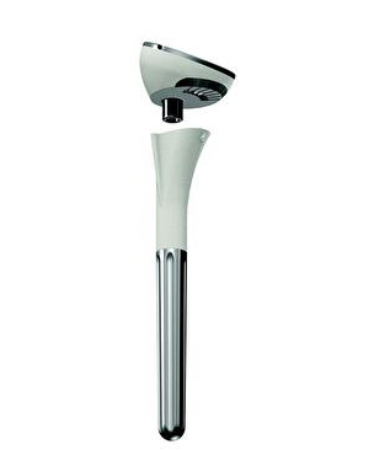

Humeral component
Fixation

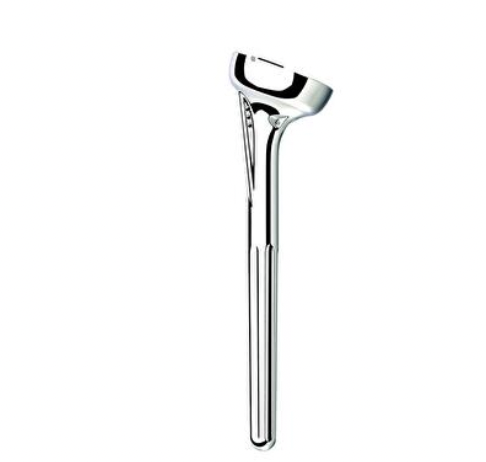

Depuy Synthes Delta
| Fixation | 1 year | 5 year | 10 year | 14 year |
|---|---|---|---|---|
| Uncemented (n=21,000) | 1.9 | 3.5 | 5.1 | 6.9 |
| Hybrid (humerus cemented) (n=2,600) | 1.9 | 3.1 | 4.5 | 4.9 |
Stem length
| Stem length | 1 year | 5 year | 10 year | 14 year |
|---|---|---|---|---|
| Short <100mm (n=10,000) | 2.0 | 3.3 | 4.3 | 5.7 |
| Conventional > 100mm (n=13,500) | 1.8 | 3.6 | 5.4 | 7.3 |
Outcomes
Clinical outcome
- systematic review of 1600 rTSA with minimum 5 year follow up
- 88% good or excellent patient reported outcomes
Range of motion
- systematic review of rTSA
- mean improvement of 56° in active flexion
- 50° in active abduction
- 14° in active external rotation
- systematic review of 1600 rTSA with minimum 5 year follow up
- active forward flexion 126° ± 13°
- active abduction 106° ± 11°
- active internal rotation 6° ± 2°
Rotator cuff arthropathy versus fracture
Paras et al J Shoulder Elbow Surg 2022
- systematic review of rTSA for RC arthropathy v 3 or 4 part fracture
- worse outcome scores and ROM for rTSA in fracture
Patients > 70 with GHJ OA and intact rotator cuff
Dragonas et al J Should Elbow Arthroplasty 2023
- systematic review of aTSA v rTSA in older patients with intact rotator cuff
- 1472 aTSA and 1259 rTSA with minimum follow up of 2 years
- better outcomes with aTSA
- increased revision rate with aTSA
Kim et al J Orthop Traumatol 2022
- meta-analysis of 6 studies comparing aTSA and rTSA with intact cuff
- no difference functional scores
- better external rotation with aTSA
- increased glenoid loosening with aTSA
- increased notching with rTSA
Survival
Australian Joint Registry 2024
Revision rate %
| Indication | 1 year | 5 year | 10 year | 14 years |
|---|---|---|---|---|
| Rotator cuff arthropathy (n=20,500) | 2.3 | 4.2 | 5.4 | 6.1 |
| Osteoarthritis (n=24,000) | 1.9 | 3.5 | 5.0 | 6.7 |
| Fracture (n=8,000) | 3.1 | 4.8 | 5.9 | 5.9 |
| Age | 1 year | 5 year | 10 year | 14 years |
|---|---|---|---|---|
| < 55 (n=363) | 3.2 | 5.5 | ||
| 55 - 64 (n=2,500) | 3.5 | 6.0 | 9.3 | |
| 65 - 74 (n=9,500) | 1.8 | 3.6 | 5.4 | 7.2 |
| > 75 (n=11,500) | 1.6 | 2.7 | 3.8 | 4.3 |
| Gender | 1 year | 5 year | 10 year | 14 years |
|---|---|---|---|---|
| Male | 3.0 | 5.1 | 6.7 | 9.5 |
| Female | 1.2 | 2.4 | 4.0 | 5.0 |
