Clavicle Fractures



clavclav



Mechanism



Direct fall onto shoulder / FOOSH

Fall off bicycle / sports



Incidence



Fractures of the clavicle are common

- 70% male

- 5% of all fractures

- 80% involve the middle third



Anatomy



Ossification Shape

Intramembranus

First bone to ossify / 5th week fetal life

S shaped double curved bone

Middle 1/3 is junction of 2 curves

Rotates 40o with scapula is elevated
Most growth occurs at medial end Medial convex anterior Most rotation occurs with arm above shoulder height
Medial physis last to close at age 22 - 25 Lateral convex posterior



Classification clavicle fractures



Fractures may be divided into three regions of the clavicle



Lateral Midshaft Medial

Lateral 1/5 of clavicle

Line drawn up from base of coracoid

Intermediate 3/5

Medial 1/5 of clavicle

Line drawn up from center first rib

20% of clavicle fractures



70 - 80% Rare
Distal clavical fracture clav



Examination



Skin

- skin tenting / threatened skin

- compound wounds



Clavcmpd clav

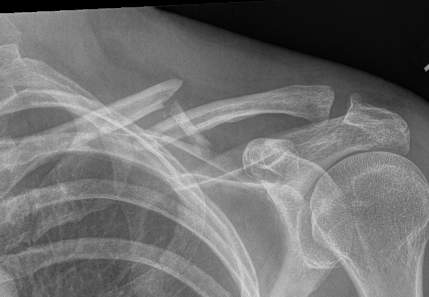

Xray

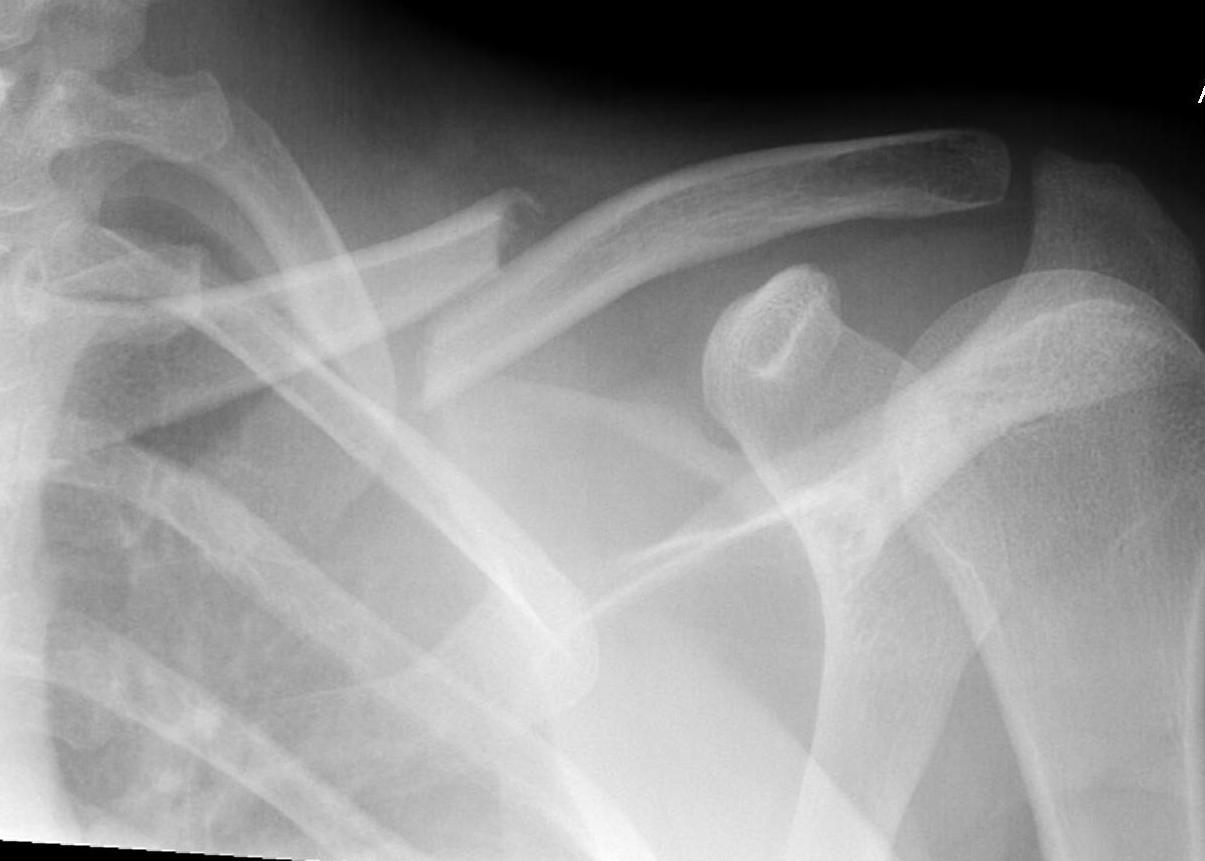

Shortening



clavclav

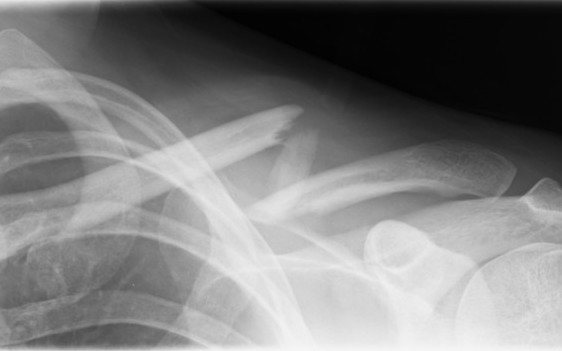

Displacement

- the proximal fragment elevated by sternocleidomastoid

- lateral fragment sags down with weight of shoulder



clavclav



Management



Operative indications



Absolute Relative
Compound fracture Shortened / displaced
Skin tenting / skin under threat Multitrauma
  Floating shoulder



Clavicle Fracture Skin Tentingcmpd clav

Compound clavicle fracture

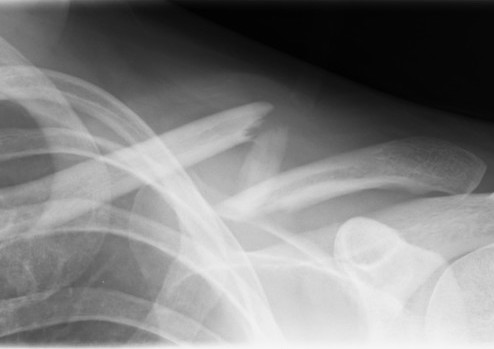

Shorted / displaced midshaft clavicle fractures



clav frac

Z shaped midshaft clavicle fracture



Operative versus Nonoperative management



clav



Canadian Orthopedic Trauma Society JBJS Am 2007

- RCT of 62 operative v 49 nonoperative treatment of displaced midshaft clavicle fractures

- operative v nonoperative

- time to union: 16 v 28 weeks

- nonunion: 5% v 14%

- symptomatic malunion: 0 v 18%



Robinson et al JBJS Am 2013

- RCT of 200 patients with displaced clavicle fractures

- operative versus nonoperative

- nonunion: 1% v 15%

- no difference in outcome if union achieved



Woltz et al JBJS Am 2017

- RCT of 160 patients with displaced clavicle fractures

- operative versus nonoperative

- nonunion: 2% v 23%

- no difference in outcome if union achieved



Summary



Plate fixation of shorted displaced midshaft clavicle fractures reduces nonunion rates



Operative Management



Options



Plate fixation

Intramedullary screw



Plate fixation

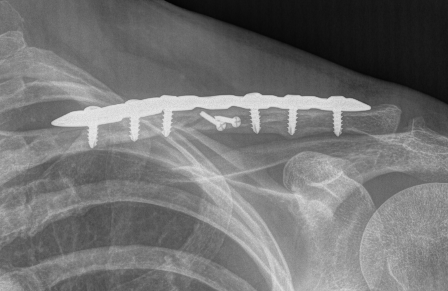

Clavicle PlateClavicle Plate



Superior versus anteroinferior plates



Nourian et al J Orthop Trauma 2017

- systematic review of superior v anteroinferior plates

- no difference in outcome or union rates

- higher incidence sympomatic hardware with superior plates

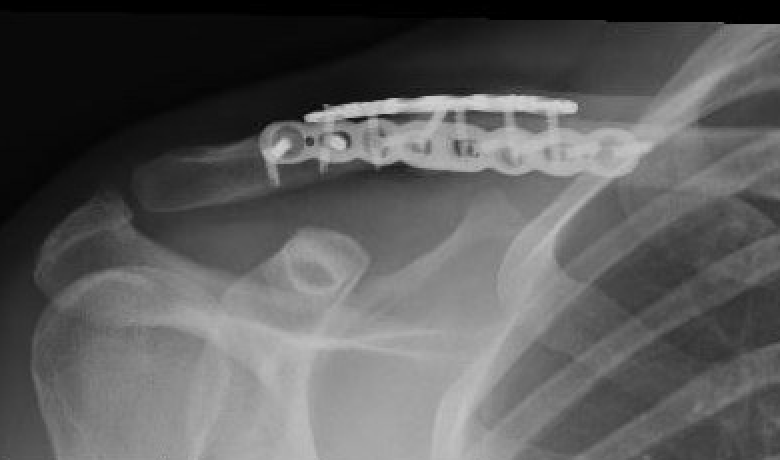

Dual plating



Dual plating



Reddy et al AJSM 2023

- comparison of superior / inferior / dual plating with minifrag plates

- lowest rate of reoperation with minifrag plates

- reduced nonunion and reduced need to remove prominent hardware



Technique



Vumedi clavicle ORIF with plate video



Lazy beach chair

- square drape / free drape

- LA with Adrenalin



Transverse incision in Langer’s line

- ? identify and protect supraclavicular nerves

- divide platysmus as a layer to repair later

- clean and reduce fracture

- application contoured locking plate

- need 6 cortices each side



supraclav nervessupraclavicular nerves

Supraclavicular nerve branches



Intramedullary screw



Clavicle IM Fixation



Indication



Displaced clavicle fractures

Minimal comminution



Results



Houwert et al JSES 2016

- systematic review of plate versus IM screw fixation

- no difference in union rates / outcomes

- increased hardware removal with screw fixation

- increased refracture rate after plate removal



Fuglesang et al Bone Joint J 2017

- RCT of plate versus IM screw in 123 patients

- shorter duration of surgery with IM screw

- faster functional recovery with plate fixation

- slower function recovery with IM screw fixation in setting of increasing comminution



Technique



Vumedi surgical technique clavicle IM screw



Mini open approach to fracture

- drill medial fragment for screw

- pass cannulated wire through lateral fragment and out through skin

- reduce fracture and pass wire into medial fragment

- drill lateral fragment

- insert cannulated 6.5 mm screw

- needs to be between 80 and 110 mm

- check x-ray to ensure good medial fixation



Complications



Operative management



Painful hardware

Numbness

Pneumothorax

Infection / wound breakdown

Nonunion /malunion



Vascular injury



Subclavian vein injury

- can be adhered to periosteum medially

- careful with medial screws

- instrumentation medially and inferiorly must be subperiosteal

- may need clavicular osteotomy to control bleeding



Air embolus

- from subclavian vein injury

- patient must be put in immediate head down position

- prevent further air embolus with pressure / saline immersion

- aspirate air from right ventricle

- vascular repair



Subclavian artery pseudoaneurysm

- delayed presentation with intermittent claudication

- pulsatile mass



Infection / wound breakdown



Clavicle plate infectionclav plate



Periprosthetic fracture



Clavicle peripros #



Nonunion



Clavicle Non UnionClavicle Nonunion



Clavicle Malunion ORIF



Technique



Vumedi dual plating clavicle nonunion



Results



Muhlenfeld et al J Clin Med 2024

- 44 patients with nonunion

- union rate with plate: 94%

- union rate with plate + bone graft: 96%



Malunion



Symptoms

- pain, weakness, fatigue, parasthesia



Theory

- clavicle shortening causes altered scapular mechanics

- scapular winging

- increased thoracic outlet symptoms

- disrupted ACJ and SCJ



Technique



Vumedi surgical technique video clavicle malunion



Results



McKee et al JBJS Am 2003

- 15 patients with clavicle malunion

- average shortening 2.9 cm

- osteotomy + plate

- 1 non union

- 8/12 patients with weakness and pain improved
